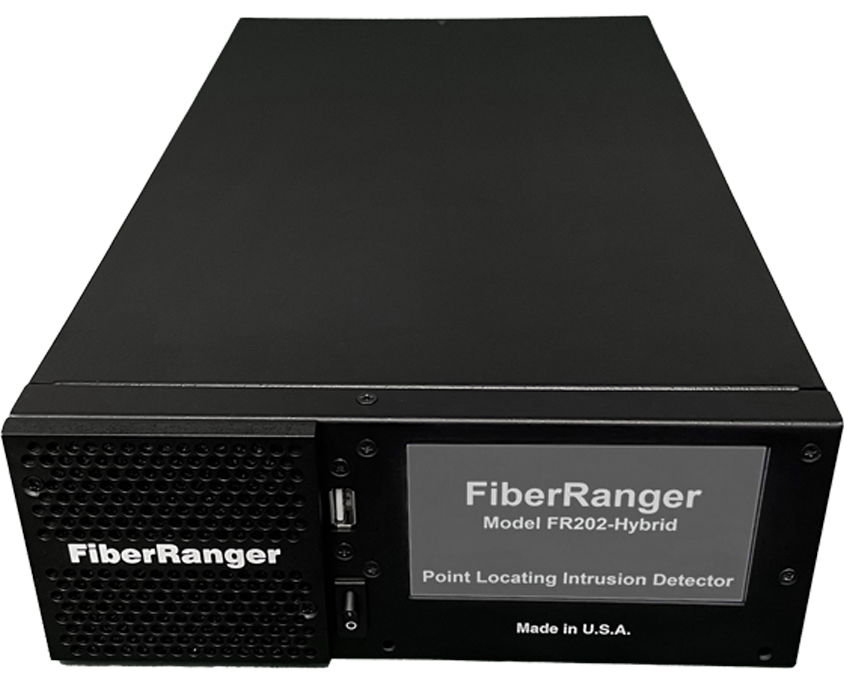

FR202-Hybrid

Long Range and High Location Accuracy

Long Range (up to 40 km per system and up to 20 km each sensor) with pinpoint location accuracy of +/- 6 m. The system has 2 sensors.

Small Form Factor

Smallest form factor in the market. FR202-Hybrid system takes a half of 2U space in a 19” rack. In addition to occupying less rack space, shipping and handling is made easy.

Simple Installation and Maintenance Free

Easy to install, calibrate, and tune. Zones are configured using software, adding flexibility to an installation. No electrical power required in the field, and can be installed on most types of fences as well as buried in soil. Once installed, maintenance is low.

Cut Immunity

The system is immune to a cable cut when installed in a loop configuration. Each sensor detects up to the point of a cut.

Advanced Signal Processing

Algorithms use pattern recognition for Classification and advanced background rejection leading to superior Probability of Detection and a low nuisance alarm rate.

Advanced Features

GPS mapping of site perimeter, detection of multiple simultaneous events, remote connectivity, and remote troubleshooting.

Immunity

The sensor is based on fiber-optic cable, which is immune to EMI / RFI and lightning.

Certification

FCC Part 15 Subpart B Class A, CE (EMC Directive 2014/30/EU), ROHS.

FR202-Hybrid is a ranging product that can detect, classify, and precisely locate an intrusion to within a few meters. It uses advanced artificial intelligence and pattern recognition capabilities to bring the highest probability of detection and lowest nuisance alarm rate in the industry. Intelligent background rejection removes the effect of undesirable factors such as wind, rain, thunder, vehicles, trains, planes, etc. In addition, the User Interface is developed to be intuitive with a high degree of automation to make it highly user friendly. FR202-Hybrid can be used on most flexible and rigid fence perimeters, and the fiber-optic cable can also be buried. Both the fence and buried segments can be separately tuned. Lead-in capabilities allow for sensing to start right on the fence, while the system is installed inside a controller room. Installation, calibration, and tuning are simple and intuitive.
